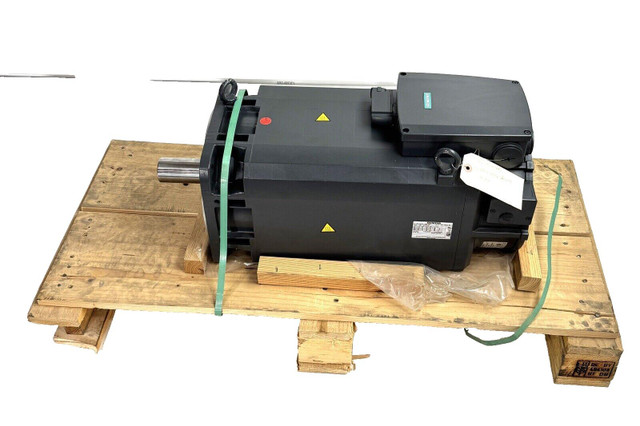

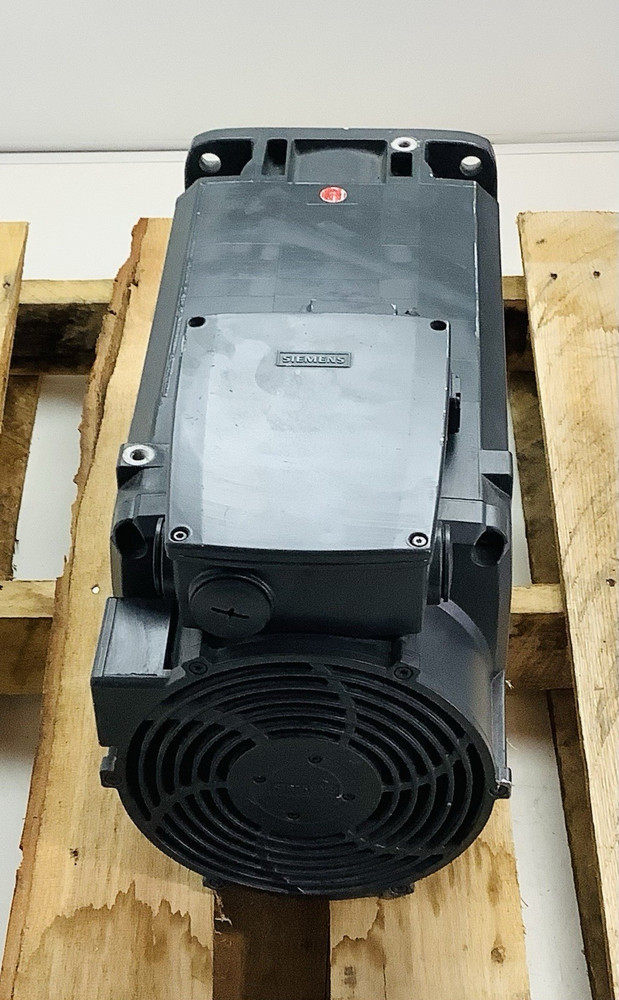

Siemens 1PH8137-1DB12-2BA1 Motor; Induction; Compact; 323/391/458V; 18A; 14.7/1

Name: Siemens 1PH8137-1DB12-2BA1 Motor; Induction; Compact; 323/391/458V; 18A; 14.7/1
Brand: Siemens
Price: 6500 USD
Availability: InStock

0 review Write a Review

SIMOTICS M compact asynchronous motor 400 r/min 6.9 kW 165 Nm 18 A 323 V 500 r/min 8.6 kW 164 Nm 18 A 391 V 600 r/min 10.3 kW 164 Nm 18 A 458 V 700 r/min 11.5 k…

SKU:

Condition: New

Availability: Usually Ships in 24 hours

Weight: 350.00 LBS

Shipping: Calculated at Checkout

$6,500.00

Current Stock: 1

Quantity:

Product Details

Product Details

SIMOTICS M compact asynchronous motor 400 r/min 6.9 kW 165 Nm 18 A 323 V 500 r/min 8.6 kW 164 Nm 18 A 391 V 600 r/min 10.3 kW 164 Nm 18 A 458 V 700 r/min 11.5 kW 157 Nm 17.5 A 500 V forced ventilation; direction of air flow NDE--> DE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
